YCSB

YCSB (Yahoo!® Cloud Serving Benchmark) is an industry-standard benchmark for databases and storage engines supporting key-value workloads. The YCSB implementation is open source, and includes an extensible framework for integrating different data stores.

We integrated HSE with YCSB to make it easy to compare its performance and scalability to that of other storage engines for YCSB workloads. The hse-ycsb repo is a fork of YCSB that adds support for HSE.

In the sections that follow, the reader is assumed to be familiar with configuring and running the YCSB benchmark. The information provided here is specific to using YCSB with HSE.

Install HSE and Create a KVDB

Review the getting started section of this documentation. Then, following those instructions and examples, start by

  • Installing HSE and mpool from packages or source
  • Configuring an mpool for HSE storage with appropriate permissions
  • Creating an HSE KVDB in that mpool to store the YCSB data

In the examples below, we assume the name of the mpool is ycsbData, which is also the name of the KVDB.

Install YCSB Dependencies

Install dependencies for your platform.

$ sudo dnf install maven rpm-build

$ sudo apt-get install maven

$ sudo yum install rh-maven36 java-1.8.0-openjdk java-1.8.0-openjdk-devel rpm-build

Install YCSB with HSE from Packages

YCSB with HSE can be installed from release packages.

Download and install the latest hse-ycsb package for your platform. Package names start with hse-ycsb*A.B.C.D.E-X.Y.Z, where

  • A.B.C is the YCSB version (e.g., 0.17.0)
  • D.E is our YCSB integration version
  • X.Y.Z is the minimum HSE release version required

Tip

An example of a specific prefix is hse-ycsb-0.17.0.2.1-1.8.0.

Install the package for your platform as follows.

$ sudo dnf install ./hse-ycsb-A.B.C.D.E-X.Y.Z*.rpm

$ sudo apt-get install ./hse-ycsb_A.B.C.D.E-X.Y.Z*.deb

$ sudo yum install ./hse-ycsb-A.B.C.D.E-X.Y.Z*.rpm

Install YCSB with HSE from Source

YCSB with HSE can also be built and installed from source.

Clone the latest release tag from the hse-ycsb repo. Releases are named rA.B.C.D.E-hse-X.Y.Z where

  • A.B.C is the YCSB version (e.g., 0.17.0)
  • D.E is our YCSB integration version
  • X.Y.Z is the minimum HSE release version required

Tip

An example of a specific release tag is r0.17.0.2.1-hse-1.8.0.

For example

$ git clone https://github.com/hse-project/hse-ycsb.git
$ cd hse-ycsb
$ git checkout rA.B.C.D.E-hse-X.Y.Z

Build and install YCSB for your platform as follows.

$ make package

Note

For r0.17.0.2.0-hse-1.7.1 instead use make rpm

Install the resulting package as described above for the RHEL 8 release package. You can locate the package built by executing

$ find /tmp/$(id -un)/ -name hse-ycsb*.rpm


$ make package
Install the resulting package as described above for the Ubuntu 18.04 release package. You can locate the package built by executing
$ find /tmp/$(id -un)/ -name hse-ycsb*.deb


$ scl enable rh-maven36 "make rpm"
Install the resulting package as described above for the RHEL 7 release package. You can locate the package built by executing
$ find /tmp/$(id -un)/ -name hse-ycsb*.rpm

New YCSB Options

The build of YCSB with HSE adds the following options.

  • hse.mpool_name is the name of the mpool (KVDB) storing the YCSB data
  • hse.params is a string of comma-separated HSE parameters; e.g., "kvdb.dur_intvl_ms=1000,kvdb.log_lvl=6"
  • hse.config_path is the path to an HSE configuration file

HSE also installs configuration files in /opt/hse/config for use with YCSB. There are separate configuration files for each of load and run phases. Furthermore, YCSB Workload E has its own pair of HSE configuration files.

Run YCSB with HSE

The following executes YCSB Workload A with HSE

$ cd /opt/hse-ycsb/
$ sudo alternatives --set python /usr/bin/python2
$ ./bin/ycsb load hse -threads 96 -P workloads/workloada -p recordcount=200000 -p hse.mpool_name=ycsbData -p hse.config_path=/opt/hse/config/native_ycsb_abcdf_load.yml
$ ./bin/ycsb run hse -threads 96 -P workloads/workloada -p recordcount=200000 -p operationcount=200000 -p hse.mpool_name=ycsbData -p hse.config_path=/opt/hse/config/native_ycsb_abcdf_run.yml

The owner (UID) and group owner (GID) of the mpool that ycsb will use to store data should match the user account running ycsb.

See the release notes for any limitations or known issues for a particular release of YCSB with HSE.

YCSB Performance Results

Below are results from running YCSB with HSE. For comparison, we include results from running YCSB with RocksDB, a popular and widely-deployed key-value store.

Server configuration:

  • 2-socket Intel® Xeon® CPU E5-2690 v4
  • 256GB DRAM
  • 4x Micron® 9300 NVMe SSDs 3.2TB in an LVM striped logical volume
  • RHEL 8.1
  • HSE 1.7.0
  • RocksDB 6.6.4

YCSB benchmark configuration:

  • 2TB dataset consisting of 2-billion 1,000-byte records
  • 96 client threads
  • 2 billion operations per workload
  • YCSB 0.17.0

For HSE, we specified the configuration files /opt/hse/config/native_ycsb_abcdf_load.yml and /opt/hse/config/native_ycsb_abcdf_run.yml for the load and run phases of YCSB, respectively. These are installed with HSE.

The following table summarizes the YCSB workloads presented here. The application examples come from the YCSB documentation.

YCSB Workload Operations Application Example
A 50% Read; 50% Update Session store recording user-session activity
B 95% Read; 5% Update Photo tagging
C 100% Read User profile cache
D 95% Read; 5% Insert User status updates

Load Phase

YCSB starts by populating the dataset (database) to the size specified. This is a 100% Insert workload. Load phase statistics are presented in the following table. For this workload, HSE delivered more than 8x the throughput compared to RocksDB — reducing total duration by 88%.

Load Metric HSE RocksDB
Duration (minutes) 34 271
Inserts / second 986,009 122,899
Insert 99.9% latency (ms) 1.6 19.5

Run Phase

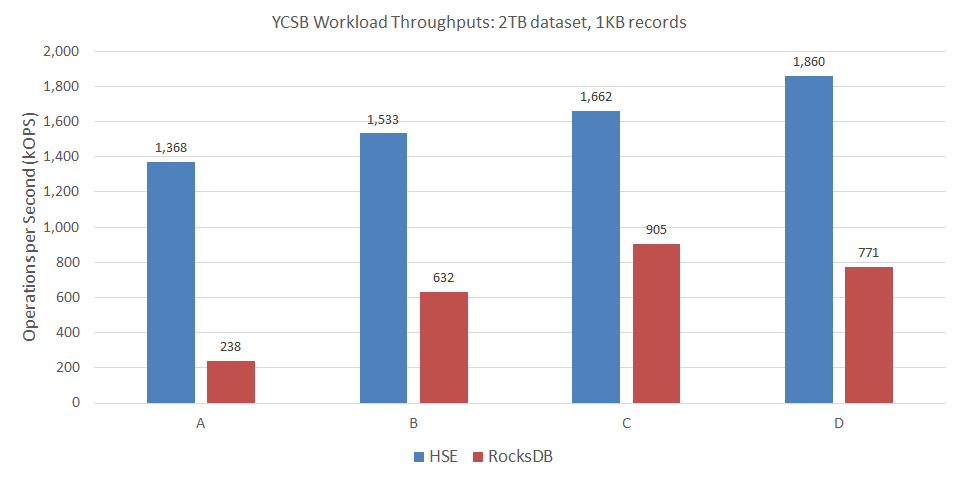

Run phase throughputs for HSE and RocksDB are shown in the following chart. For these YCSB workloads, HSE delivered up to nearly 6x more throughput than RocksDB.

Placeholder

In delivering high throughput, HSE also demonstrated good 99.9% tail latency, as shown below. For these YCSB workloads, HSE reduced read tail latency up to 42%, and write (insert or update) tail latency by as much as 91%.

Placeholder

Finally, we measured the amount of data written to and read from the drives in the course of executing each workload. Reducing writes is important for SSDs because it translates to increased endurance. Reducing both writes and reads is important for networked storage to reduce load on the fabric.

The following chart shows the total bytes of data written to or read from the drives during workload execution. For these YCSB workloads, HSE reduced bytes read up to 64%, and bytes written by as much as 85%.

Placeholder
